New! Makedevice

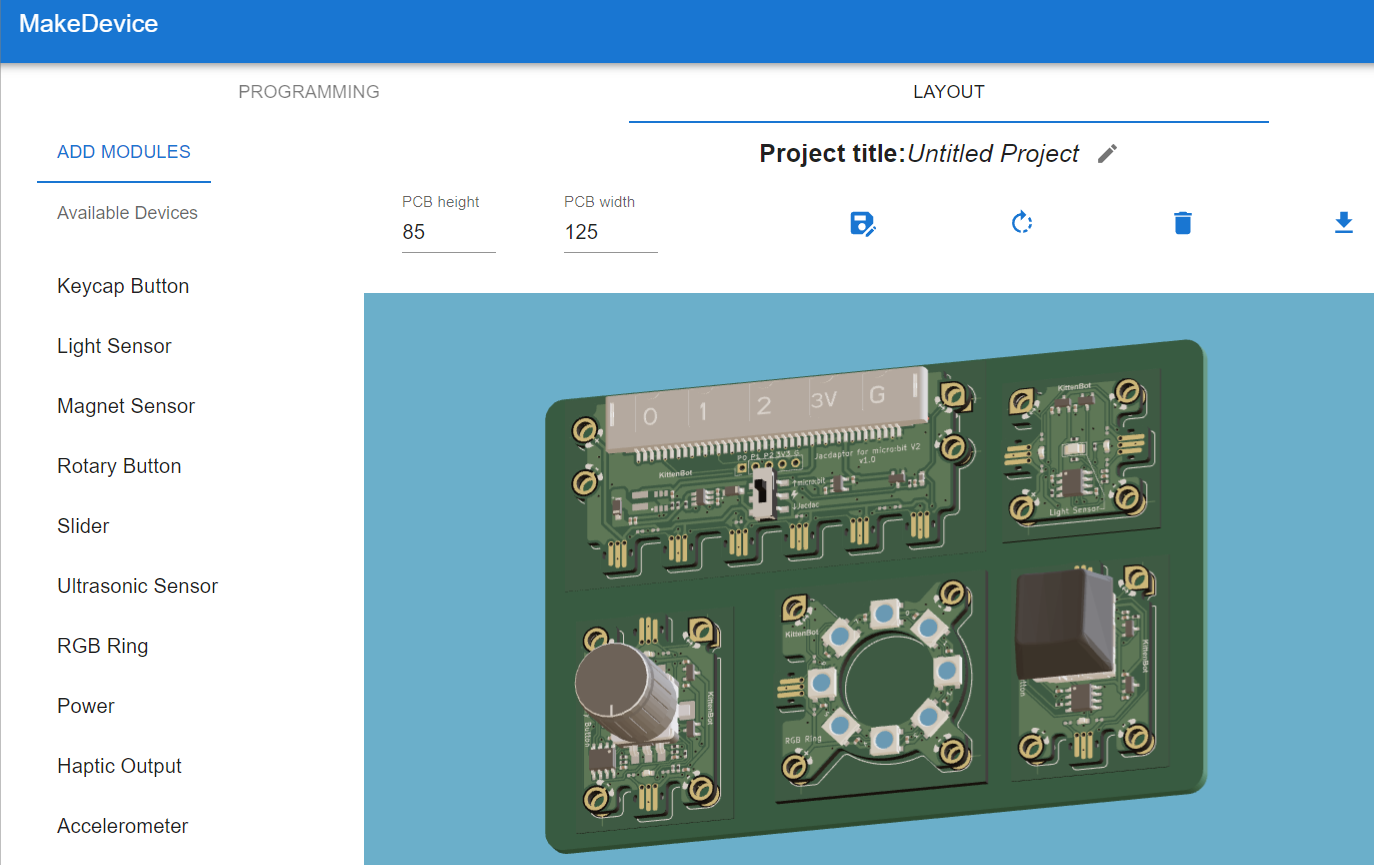

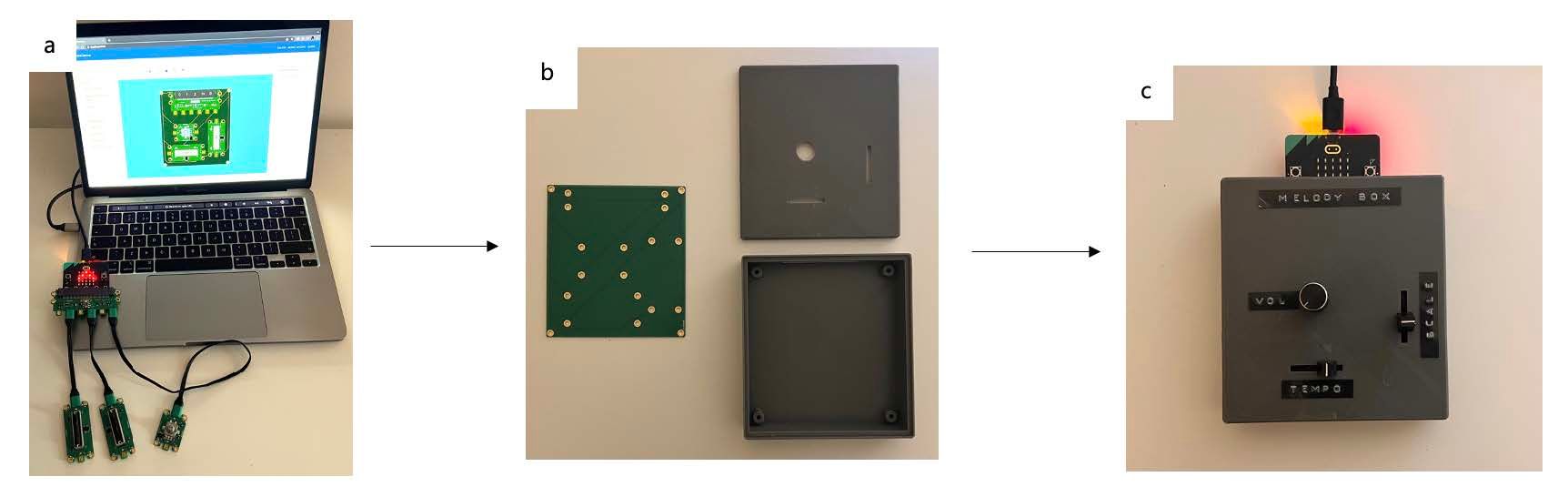

A web-based tool that leverages the Jacdac prototyping platform, enabling an end-to-end workflow from a wired desktop prototype to a robust, enclosed device with modules electrically connected via a carrier PCB.
- Jacdac modules attached to the PC are automatically detected, arranged on a carrier PCB and electrically routed
- Intuitive drag and drop interface lets users (re)arrange modules
- Automatic generation of Gerber files from the final arrangement, suitable for online PCB fabrication services without modification.
- Various enclosure options are presented to the user, MakeDevice automatically generates STL files for 3D printing and SVGs for laser cut press fit boxes or stencils
Research Paper
